3 Terminal Lamp Socket

April 17, 2024 Post a Comment

3 terminal lamp socket

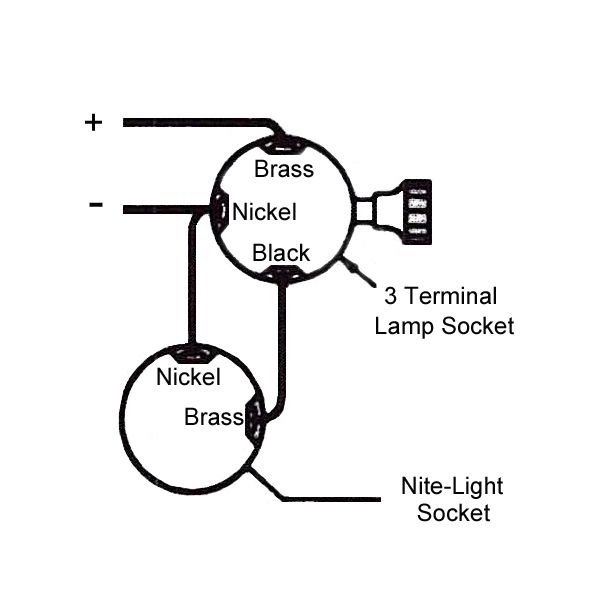

Three Terminals:A three terminal socket allows two sockets to be wired together and work on the same switch. Both sockets must be three terminal and one socket must be keyed. Turning the key allows three lighting options: Off, Both On, Keyed On with Keyless Off.

How does a tri light socket work?

When you twist the switch on a three-way lamp, the first click illuminates a single filament. The next click deactivates the first and illuminates the second, this one with a somewhat higher wattage. The final, third click illuminates both filaments at once, giving you the brightest light.

How do you rewire a 3 way lamp socket?

Loosen the terminal screws and remove the wires from the old socket. Then attach the wires to the terminals on the new socket. Finally, replace the socket cover, reattach the shade bracket, screw in the bulb and replace the shade. Plug the lamp back in and now you've got lighting for just about any mood or occasion.

How do you know if a lamp socket is 3 way?

Instead what you have is a three-way socket interior the way you can tell is if you look inside you

What are the different types of lamp sockets?

Read our article on Light Bulb Socket Types.

Brass Lamp Sockets Brass Lamp Sockets.
Nickel Lamp Sockets Nickel Lamp Sockets.
Phenolic Lamp Sockets Phenolic Lamp Sockets.
Porcelain Lamp Sockets Porcelain Lamp Sockets.
Candelabra E-12 Base Sockets Candelabra E-12 Base Sockets.
Reducers & Enlargers.
Cluster Sockets.

Are all lamp sockets the same?

There are two common socket types, which are the classic screw socket (Edison) and the pin socket. All replacements are 1:1 possible without any mechanical or electrical adjustments.

Why does my 3-way lamp only work one way?

The most likely explanation is that one of the two filaments inside 3 way bulb burnt out or broke.

Can I use a regular LED bulb in a 3-way lamp?

Bulbs will work without any problem. Bulbs will fit without any problem (as long as they are standard bulb base size). A three-way lamp can handle high wattages (range of options for wattage of bulbs). LED bulbs can be used (high lumens, low wattage).

How do you fix a 3-way lamp socket?

And pop it off loosen the terminal screws and remove the wires from the old socket. Then attach the

Can any lamp be a 3 way lamp?

You can put a 3 way bulb in any lamp. But only the higher wattage element will work. The switch will function as an on and off switch. For example, if you use a 30/70/100W 3 way bulb, only the 70W element will work when in a regular lamp.

Does it matter which wire goes where on a lamp?

Always wire hot, neutral and ground to the proper terminals. In the typical lamp, the hot is the contact in the center bottom of the socket. The neutral is the bevel wall the build screws into. The ground is to the metal lamp body.

Why is my 3-way bulb not working?

With a 3-way bulb, if it isn't working at all, it's probably dead. You can test it by moving it to a working 3-way socket, but it's very rare that both elements of a 3-way bulb will fail at the same time. But if part of it is coming on and the other part isn't, the problem may be with the socket.

Can you put a three-way bulb in a regular socket?

Is it safe to use a 3 way bulb in a one way socket? Yes. One filament will not be connected. So only becomes a one-way and if wired correctly the switch will be on-off-on-off.

Can you use a smart bulb in a 3-way lamp?

Yes as long as the bulb has power, it will work.

What is a 3 way switch on a lamp?

A three-way lamp has a four-position rotary switch that, when combined with specially-designed light bulbs, can switch between lighting the bulb at relatively dim, moderate and bright levels – and, of course, off, reveals Hannah Murphy Lamps & Lampshades.

How many terminals are there in a lamp receptacle?

An electric bulb has two terminals.

How do you replace an old lamp socket?

Turn the base counterclockwise to remove it some will have a set screw that you'll need to loosen.

How do I know what bulb socket I have?

The first letter designates the shape or form of the base, and the number represents the width of the base (normally in millimeters). For example, our 11S14 bulb has an E26 base — the "E" refers to the style which is an Edison screw-in, and the 26 means it has a 26 mm base width.

What size is a standard lamp socket?

The first and the most popular one is the Medium Screw Base (E26). This size is the most common for the incandescent and the LED Edison vintage bulbs. This size is the same as a standard household light bulb.

What size do lamp sockets come in?

The three most often used sockets in the United States of America are the E12 (candelabra), the E26 (medium), and the E39 (mogul). As indicated in the table, there are several sockets that fall between these sizes. These three types of lighting are the most frequently used in traditional lighting.
